Manufacturer Alpha & Omega Semiconductor Inc.
Series -
Part Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 15A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Vgs(th) (Max) @ Id 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 24nC @ 10V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 1380pF @ 15V
FET Feature -
Power Dissipation (Max) 3.1W (Ta), 25W (Tc)
Rds On (Max) @ Id, Vgs 7.5 mOhm @ 20A, 10V
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount

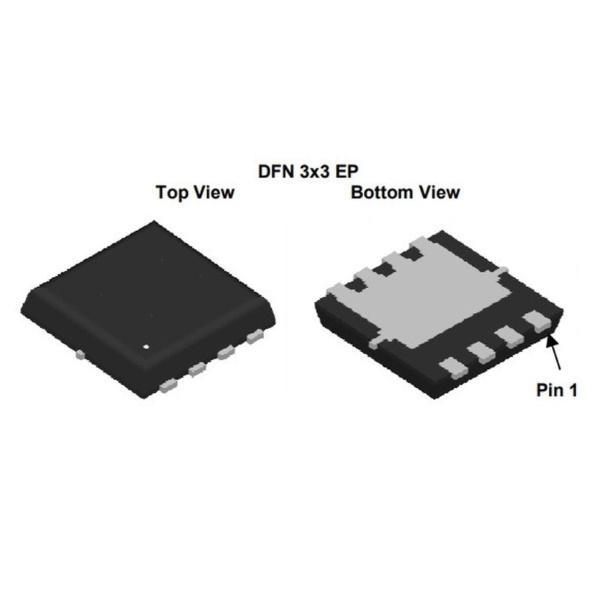

Supplier Device Package 8-DFN (3x3)
Package / Case 8-SMD, Flat Lead
